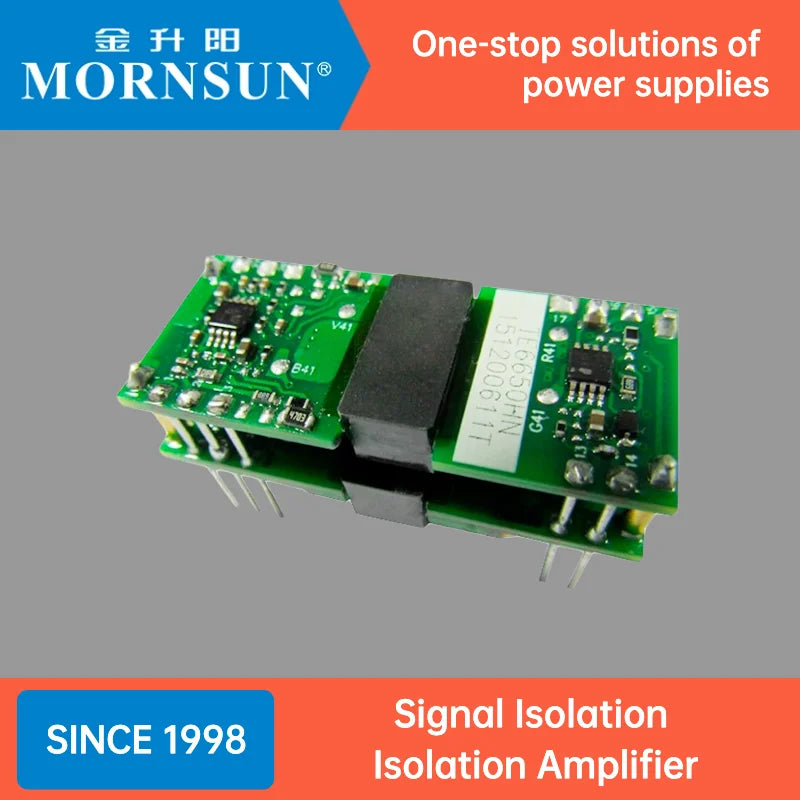

Mornsun Isolation Amplifier TEM6650AN Signal Conditioning Modules Output Isolation Signal Modules
Mornsun Isolation Amplifier TEM6650AN Signal Conditioning Modules Output Isolation Signal Modules
Sample price
Regular price
$10.50
Regular price
$10.50
Sale price
$10.50
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Signal Isolation - Isolation Amplifier
An isolation amplifier is an amplifier that provides isolation between the input and output of the circuits, including isolation
between their associated power supplies. MORNSUN offers different types of analog isolation amplifiers, such as acquisition type signal conditioning modules, output isolation signal conditioning modules, two-wire loop power supply signal conditioning modules and signal isolators, etc. These analog isolation amplifiers feature excellent temperature drift characteristics of less than 50PPM/℃ across the entire operating temperature range of -40 ℃ to +85 ℃ and achieve isolation transmission, signal conversion (programmable for some models), HART communication, signal amplification, port protection and other functions. SIP, DIP, SMD and DIN Rail packages are optional.
between their associated power supplies. MORNSUN offers different types of analog isolation amplifiers, such as acquisition type signal conditioning modules, output isolation signal conditioning modules, two-wire loop power supply signal conditioning modules and signal isolators, etc. These analog isolation amplifiers feature excellent temperature drift characteristics of less than 50PPM/℃ across the entire operating temperature range of -40 ℃ to +85 ℃ and achieve isolation transmission, signal conversion (programmable for some models), HART communication, signal amplification, port protection and other functions. SIP, DIP, SMD and DIN Rail packages are optional.
Signal Isolation - Isolation Amplifier-Output Isolation
Mornsun output isolation amplifiers are analog signal conversion modules with incoming current/voltage signal input which is transformed into isolated current/voltage signal output. This type of signal conditioner module has in addition to low temperature drift and high linearity, a low power consumption and low ripple & noise.
Signal Isolation - Isolation Amplifier-Two Wire
Mornsun two-wire isolation amplifiers are voltage input and two-wire current output loop power collection signal conditioning modules. The module powering the front-end equipment through the back-stage current loop collection mode and transmitting the voltage to an industry standard isolated 3.7-22mA output current.
Signal Isolation - Isolation Amplifier-Signal Isolator
Mornsun signal isolators isolate the electrical devices which connect the instruments in industrial fields with the control room.They isolate between the input power and output power, input signal and output signal, effectively reducing the interferences inautomatic control systems. The case of Mornsun signal isolator is as thin as 12.5mm, which saves the space for your system.
