Compact Size RS485 Isolated Transceiver Modules-TD-M485 Series

With the popularity of TD_MCAN/TD_MCANFD series, Mornsun launched compact size isolated transceiver modules - TD301M485/TD501M485. The two new modules adopts IC integrated technology to integrate power isolation, signal isolation, RS485 communication and bus protection in one module. Besides, the volume of TD-M485 series is 60% smaller than the conventional products. In addition, TD-M485 series has automatic send and receive data function and no longer need CON pin which reduce the complexity of the design.

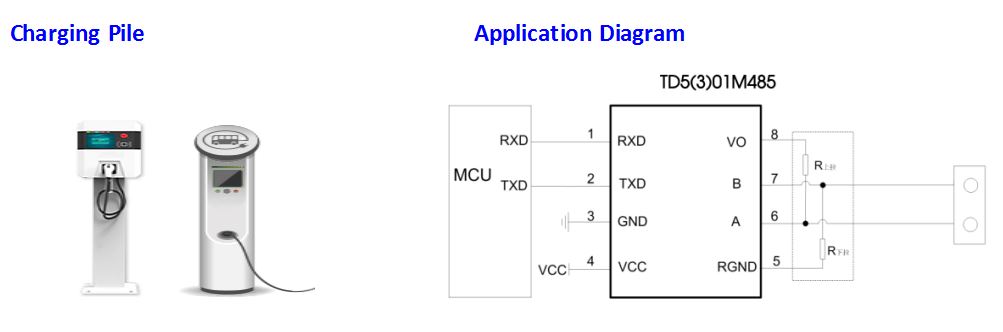

Applications:
Widely used in industrial communication, grid power and instrumentation applications.

Features:
● Compact size, DIP8 package, 12.70*10.16*7.70mm（L*W*H）
● High baud rate of up to 500kbps
● Operating ambient temperature range: -40℃ ~ +85℃
● Two-port isolation test voltage (2.5kVDC)
● Automatic send and receive data function
● The bus supports maximum 64 nodes
● Integrated isolation and ESD bus protection in one module
● Meets EN62368 standards(pending)
